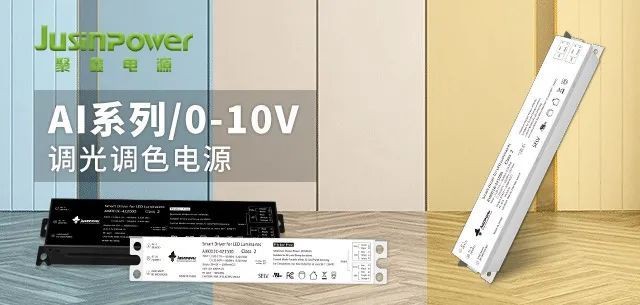

AI Series Intelligent Dimming And Color Adjustment

AI series is a 0-10V dimming specially developed by our company for lamps, with dimming signal isolation and output power of 40-80W. It has obtained FCC, UL, and 3C certifications. It has dual-stage flicker-free, high power factor, and high efficiency. High-precision, full-voltage input isolated constant current power supply.

At present, smart lighting is in the limelight and has a wide range of application scenarios around the world. It is a very hot word at the moment. The use of intelligent lighting not only adds color to the space, but also brings a lot of convenience to people, provides more scene experiences, and can even achieve energy-saving, environmentally friendly, comfortable and convenient functions. Among them, smart lighting is the most intuitive project, and we can intuitively feel its charm visually.

Features

Security protection & global use

120-347V input voltage for worldwide use. The metal shell design can effectively improve the heat dissipation capacity and also protect the power supply itself. The power supply adopts an independent dual-channel design, with short circuit, overload, and overvoltage protection, which effectively avoids damage to circuit components caused by circuit failure, extends the service life of dimming equipment and lamps, and is safer and more worry-free!

PWM/0-10V dimming/color adjustment

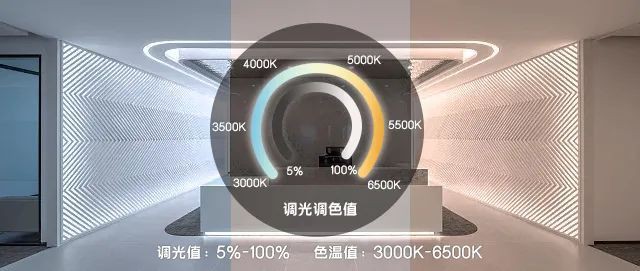

Built-in high-performance MCU chip, through the unique software algorithm of Juxin R&D team, the power supply has 3 signal receiving ports reserved, which can be allocated according to different needs to realize power adjustment, brightness adjustment, color temperature adjustment and other functions. The whole process of dimming is smooth and natural, and there is no flicker, making the human eye's visual experience more comfortable; the color temperature adjustment range is 3000K~6500K, and the brightness adjustment range is 5%-100%.

Independent dual-channel constant current output

The independent dual-channel circuit design can avoid the harm caused by the current superposition of the other LED when one of the LEDs fails, effectively protecting the lamp beads; at the same time, it will not be affected by the current imbalance caused by the unbalanced voltage of the two lamp beads. Phenomenon. Achieving diversified design requirements to make your products more unique.

12V auxiliary power supply design

The power supply comes with a 12V auxiliary power supply, which can perfectly match various smart modules and sensors to achieve intelligent interconnection of lamps.

Scene mode

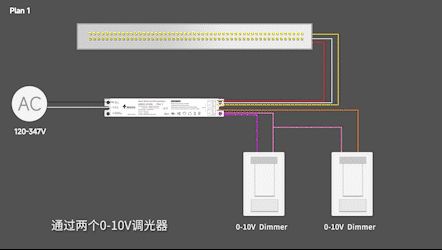

1.Turnable White function:

Achieve infinite changes in the brightness and color temperature of the lamp through two 0-10V dimmers

2.Up and Down function:

Up-Down personalization of strip luminaires via two 0-10V dimmers

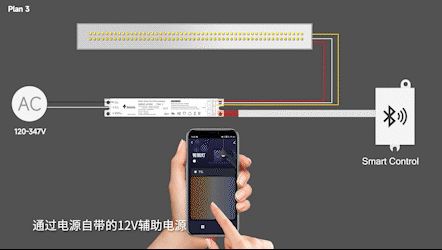

3.Intelligent module function:

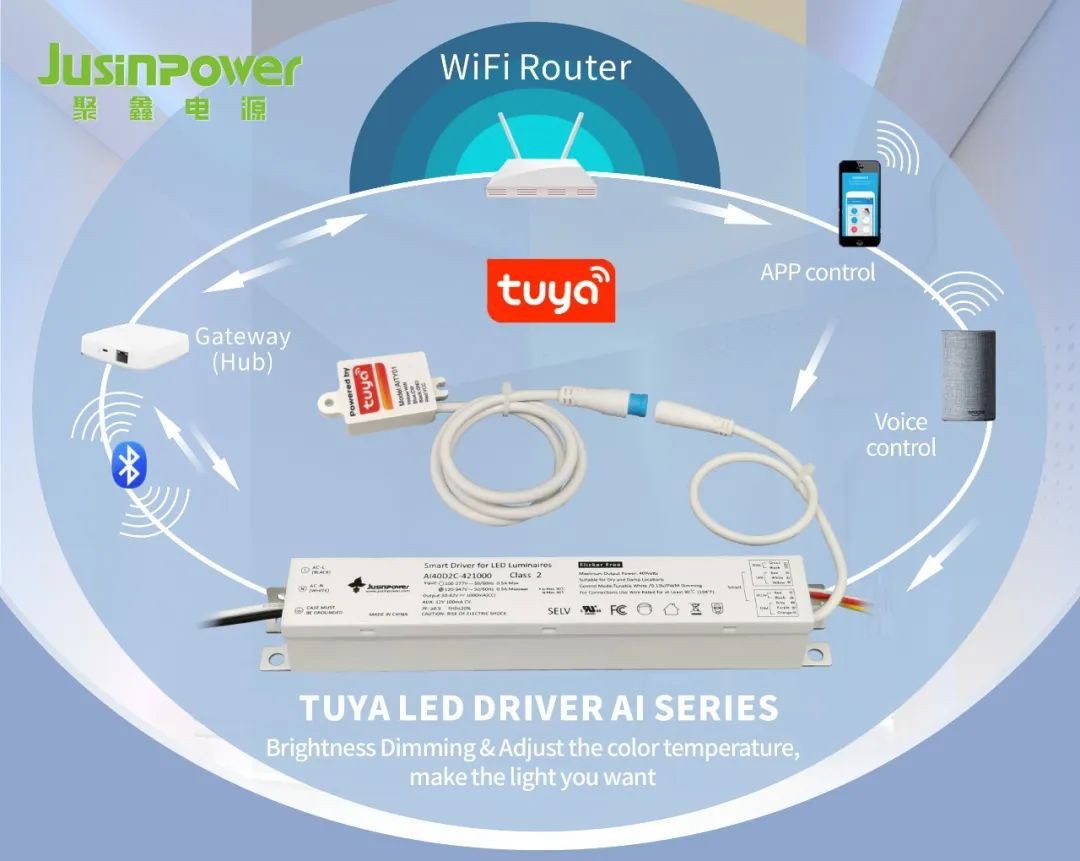

Through the built-in 12V auxiliary power supply of the power supply, it can be connected to commonly used intelligent controllers on the market to realize intelligent adjustment of lamps.

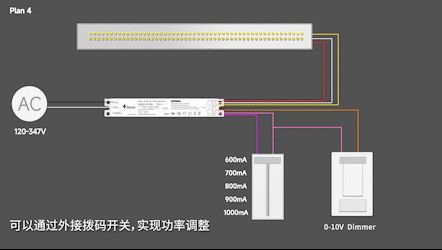

4.Dim to warm function:

Power adjustment can be achieved through an external DIP switch. The color temperature and brightness can be adjusted simultaneously through the 0-10V dimmer. When the dimmer is adjusted to the minimum, the brightness is the lowest and the color temperature becomes warmer, achieving an ideal living environment.

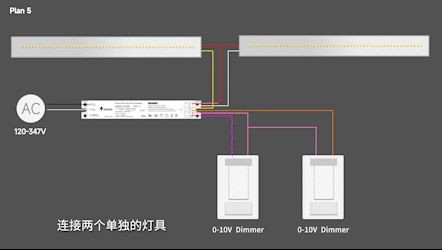

5.Dual channel function:

Connect two separate lamps and control their respective brightness through two 0-10V dimmers

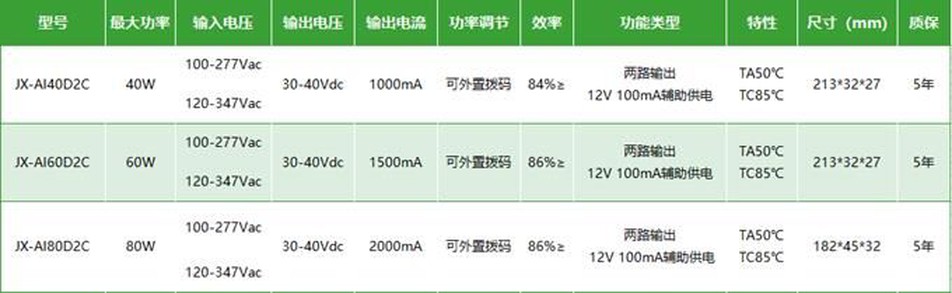

Product number
