24V Constant Voltage LED Driver for Engineering Projects | INS Series 50W–400W
The INS Series GaN 24V non-dimmable industrial LED drivers are designed for professional lighting manufacturers, OEM customers, and large-scale engineering projects. Covering a wide power range from 50W to 400W, this series delivers stable 24V constant voltage output with high efficiency and ultra-low ripple. Powered by advanced GaN (Gallium Nitride) technology, the INS series offers lower temperature rise, compact size, and long service life. It is widely used in LED strips, architectural lighting, signage, linear lighting, and industrial luminaires. All models are CE and RoHS certified and backed by a 5-year warranty.
Product Overview & Key Features
Advanced GaN (Gallium Nitride) Technology
Higher efficiency, higher power density, and significantly lower heat generation compared to traditional silicon solutions.
GaN vs Traditional Constant-Voltage Power Supply - Comparison Chart
|
Feature |
GaN Constant-Voltage PSU |
Traditional Constant-Voltage PSU |
|
Key Power Device |
Gallium Nitride (GaN) FET |
Silicon (Si) MOSFET |
|
Switching Frequency |
Very High (MHz-level) |
Lower (kHz-level) |
|
Efficiency |
High (≈94–96%) |
Lower (≈88–92%) |
|
Heat Generation |
Lower |
Higher |
|
Size &Weight |
Smaller &Lighter |
Larger &Heavier |
|
Power Density |
Higher |
Lower |
|
EMI (Electromagnetic Interference) |
Lower (better noise performance) |
Higher |
|
Thermal Management |
Easier |
Requires more cooling |
|
Output Stability |
Better ripple control |
Moderate |
|
Cost |
Higher |
Lower |
|
Design Complexity |
Higher (requires advanced layout) |
Lower (mature solution) |
True Rated Output Power
100% real output power with no false labeling, ensuring reliable system design and stable operation.
Ultra-Low Ripple Voltage (≤0.5%)
Flicker-free lighting, reduced EMI, and enhanced LED lifespan.
High Safety & Reliability
3750V isolation voltage, stable output under heavy load, suitable for 24/7 continuous operation.
Durable Aluminium Housing
Excellent heat dissipation and mechanical strength for long-term industrial use.
Certified for European Market
CE & RoHS compliant, meeting safety, environmental, and performance requirements.
5-Year Warranty
Designed for long service life and low maintenance costs

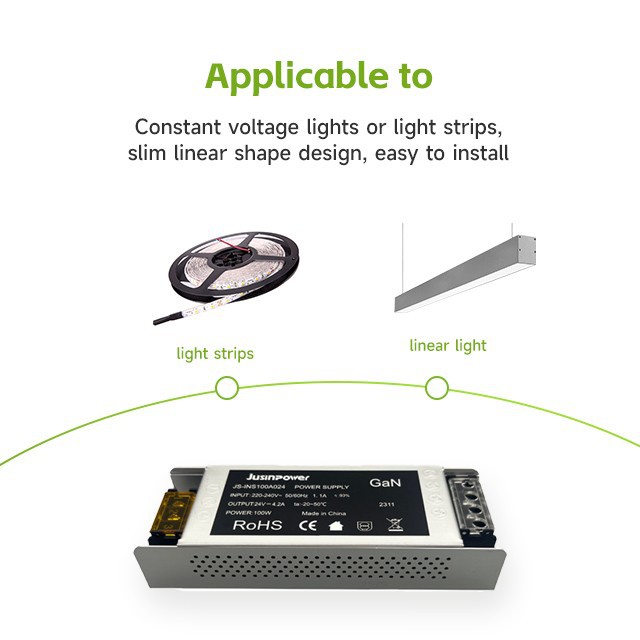

Applications
The INS Series is ideal for:
- LED strip lighting systems
- Architectural and façade lighting
- Linear and profile lighting
- Advertising light boxes and signage
- Commercial and industrial luminaires
- OEM lighting fixtures and custom projects
Hot Tags: 24v constant voltage led driver for engineering projects, China 24v constant voltage led driver for engineering projects manufacturers, suppliers, factory, constant voltage led driver for barn lighting, constant voltage led driver for coop lighting, constant voltage led driver for greenhouse lighting, constant voltage led driver for pantry lighting, constant voltage led driver for pet food store memorial lighting, constant voltage led driver for pet rehabilitation center memorial lighting
Product Specifications
Input voltage ..............................................................................176–264 VAC
Input frequency ............................................................................... 47–63 Hz
Input current (at 176VAC, full load) ........................ 0.5A (50W) to 3.3A (400W)
Standby power consumption ................... 0.1W – 0.5W (depending on model)
Power factor ....................................................... ≥0.5 @ 220VAC, >75% load
Output voltage ........................................ 24VDC or 48VDC (model-dependent)
Output current .......................................... Up to 16.8A (e.g., 400W/24V model)
Output power ........................................... 50W / 100W / 200W / 300W / 400W
Constant voltage accuracy ....................................................................... ±2%
Output ripple voltage ................ <150mV (24V models), <400mV (48V models)
Constant current accuracy ..................................................................... ±10%
Surge immunity ........... 2kV lightning surge (AC input, passes without damage)
Efficiency .................................. 90% – 95% (depending on model and output)
Load regulation ........................................................................................ ±2%
Operating temperature ....................................................... –20°C to +50°C
Storage temperature .......................................................... –40°C to +80°C
Cooling method ....................................................... Natural convection (no fan)
Insulation withstand voltage ................... 3750VAC (input to output), 5mA, 60s
Inrush current (boot surge) ..................................... 55A (50W) to 143A (400W)
Turn-on delay time ................................................................. 200ms – 530ms
Turn-off delay time ..................................................................... 30ms – 60ms
Protections ............................... Output short-circuit protection (auto-recovery)
Over-voltage protection (>1.2× rated, hiccup or clamp mode, auto-recovery)

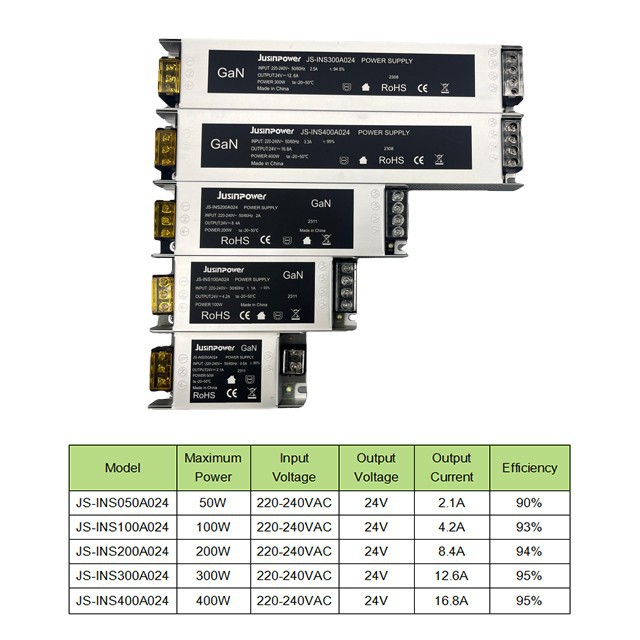

Product Series
|
Model |
Power |
Input Voltage |
Output Voltage |
Output Current |
Efficiency |
Dimensions (mm) |
IP Rating |
|
JS-INS050A024 |
50W |
220–240VAC |
24VDC |
2.1A |
90% |
100 × 48.5 × 25 |
IP20 |
|
JS-INS100A024 |
100W |
220–240VAC |
24VDC |
4.2A |
93% |
135 × 48.5 × 25 |
IP20 |
|
JS-INS200A024 |
200W |
220–240VAC |
24VDC |
8.4A |
94% |
170 × 48.5 × 25 |
IP20 |
|
JS-INS300A024 |
300W |
220–240VAC |
24VDC |
12.6A |
95% |
250 × 48.5 × 25 |
IP20 |
|
JS-INS400A024 |
400W |
220–240VAC |
24VDC |
16.8A |
95% |
250 × 48.5 × 25 |
IP20 |
Note: Besides the above specifications, other parameters can be customized. Please contact the relevant sales for further details.
