Understanding Series and Parallel Circuits: A Simple Guide – Knowledge

1.Series Circuits

A series circuit is one where electrical components are connected end-to-end in a single path. In a series circuit, if any part is disconnected, the entire circuit stops working because there is no complete path for current to flow.

2.Parallel Circuits

A parallel circuit, on the other hand, has components connected alongside each other, forming multiple paths for the current to flow. In a parallel circuit, each path operates independently, so if one path is broken, the others can still function.

3.Switches

Switches control the flow of electricity in a circuit. In a series circuit, a switch can control the entire circuit by being placed anywhere in the path. In a parallel circuit, a switch on the main line controls the whole circuit, while switches on individual branches only control their respective branches.

4.Characteristics of Series Circuits

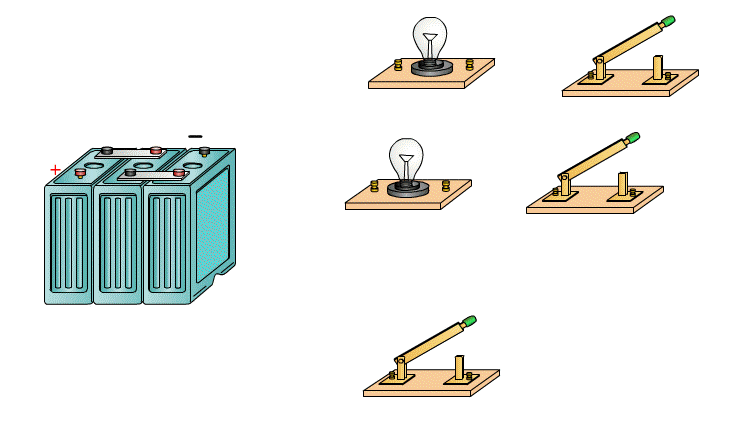

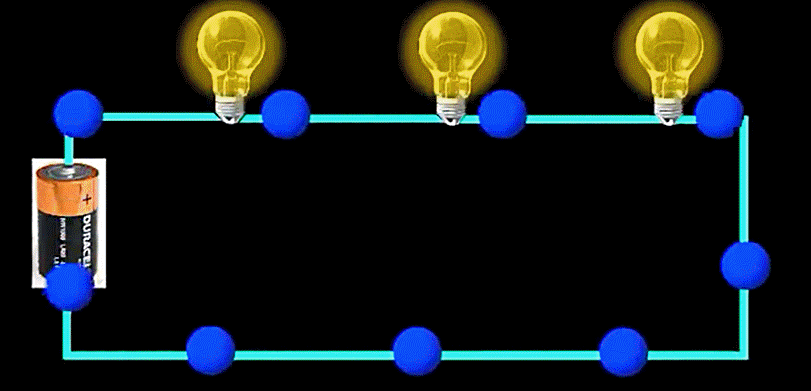

In a series circuit, there is only one path for the current to take. This means all devices in the circuit are affected by each other. For example, if one light bulb in a series string of bulbs burns out, the entire string will go dark.

5.Characteristics of Parallel Circuits

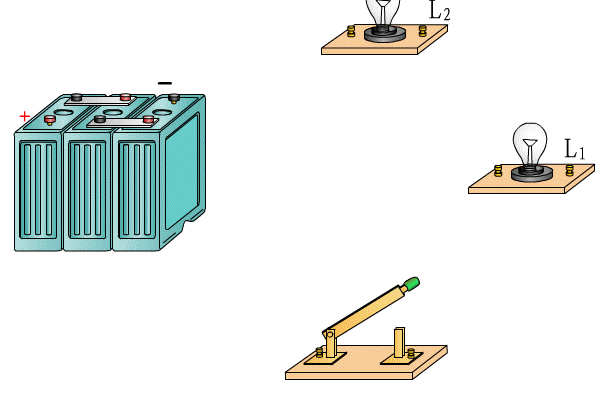

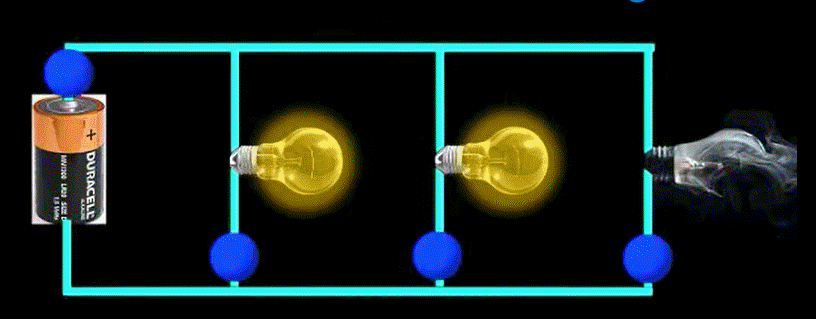

A parallel circuit has two or more paths for current to flow. Each device in the circuit operates independently. For instance, in a home, different electrical appliances are typically connected in parallel, allowing each to function without impacting the others. In a parallel circuit, a main switch can control the entire circuit, while individual switches control specific branches.

Comparison of two circuits
