Product description
The NA/NC series is a universal power supply with 0-10V dimming and 12V auxiliary power supply design. The power range covers 100-240W, and the input voltage range covers 120-277V and 120-347V. Obtained UL, FCC certification certificates. The compact shell design, full glue filling and unique heat dissipation design ensure that the power supply can operate stably even in an ultra-small size.
Safety performance:
1.Short circuit protection
2. Over-temperature protection

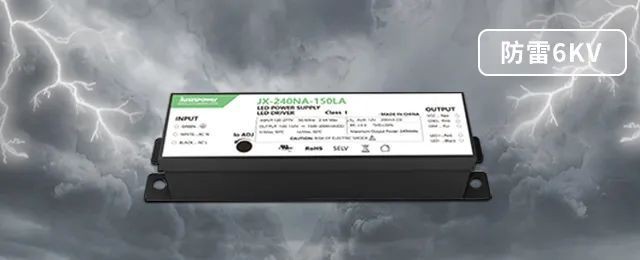

3. Lightning protection common mode 6kV, differential mode 4kV

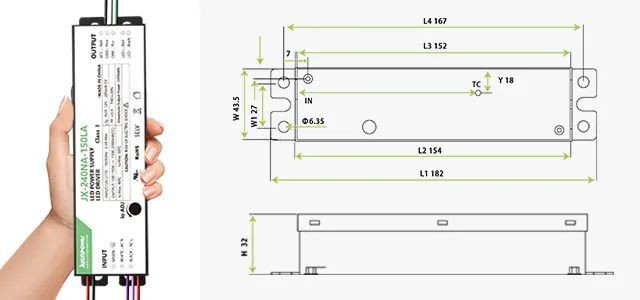

Compact housing design:
1. Reduce the weight of the entire lamp
2. Easy to install on site
3. Save lighting design space
4. Reduce transportation/storage costs

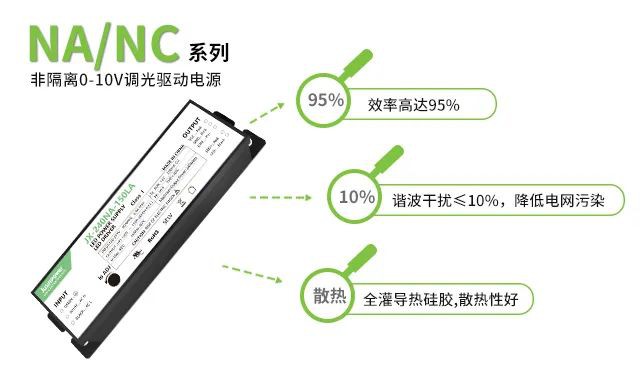

Product electrical properties:
1. High conversion efficiency: up to 95%, ensuring the thermal performance and reliability of the product, extending the service life of the power supply, and reducing maintenance costs
2. High power factor: active power factor correction, PF value > 0.9
3. Low harmonic distortion: THD ≤ 10%, reducing pollution to the power grid and improving energy utilization

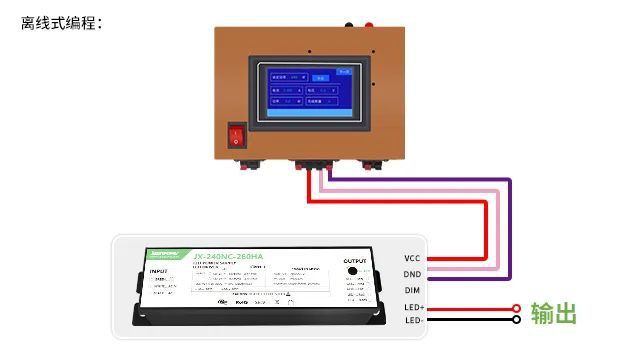

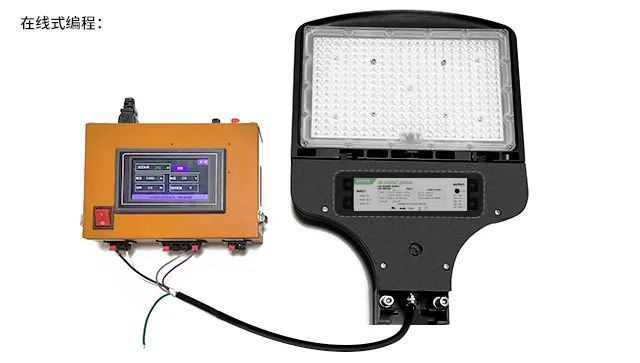

Intelligent programming:
(only for NC series)
1. Constant power setting (preset input power, automatically identify LED voltage, and realize automatic current adjustment)
2.Output current programming
3. Dimming on/off point

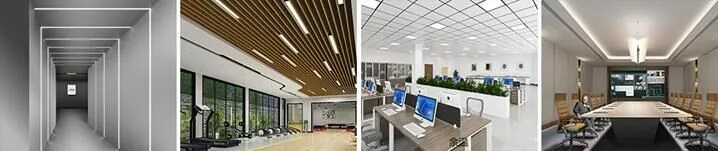

Application scenarios:

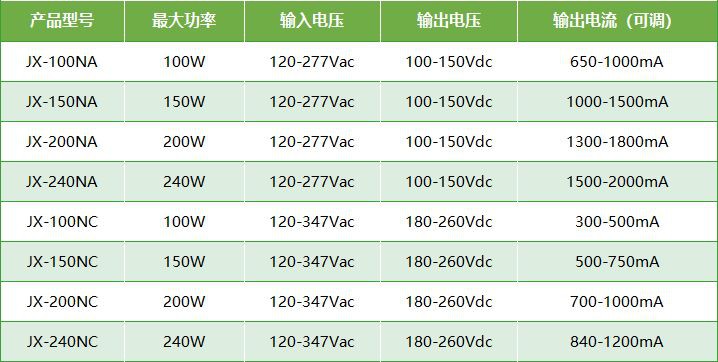

Product number:
