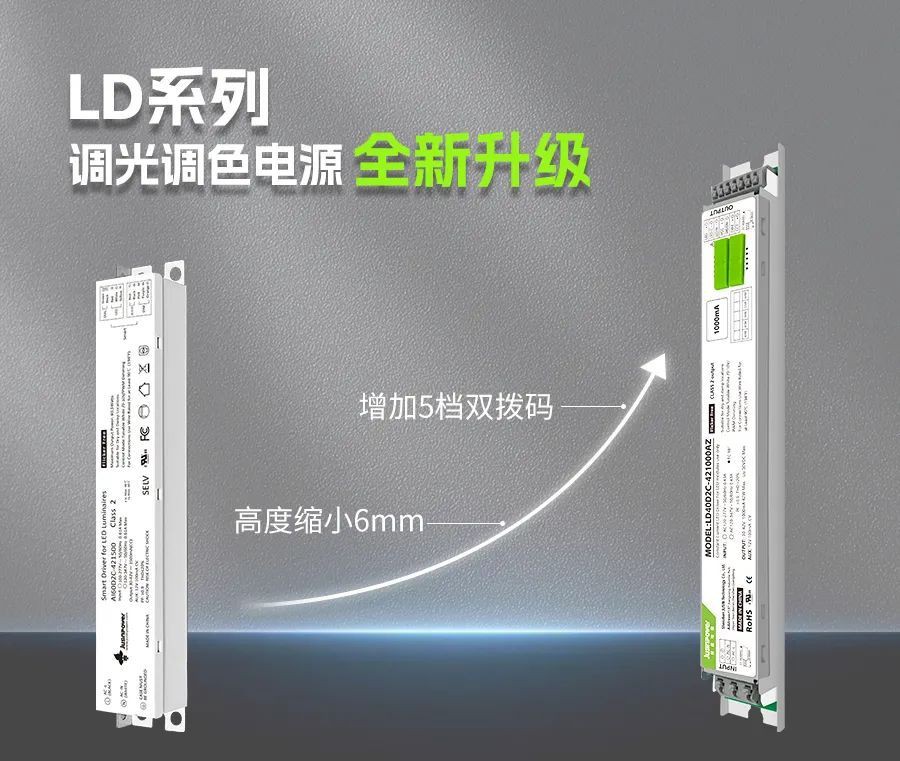

The LD series is an upgraded version of the AI series isolated constant current power supply. It is only 21mm in height and is suitable for use in more lighting fixtures in narrow spaces. It has two sets of 0-10V dimming channels and two sets of independent output channels. Customers can adjust the power and color temperature through the built-in DIP switch of the power supply or an external dimmer. 12V auxiliary power supply function can achieve perfect matching of intelligent control modules. 120-347Vac input, output power 40-80W, with UL and FCC certificates. The long metal shell has a good heat dissipation design, which greatly improves the reliability of the product and extends its service life. Including over-voltage protection, short-circuit protection, and over-temperature protection to ensure trouble-free operation of this product
Part1:Features introduce
At present, smart lighting is in the limelight and has a wide range of application scenarios around the world. It is a very hot word at the moment. The use of intelligent lighting not only adds color to the space, but also brings a lot of convenience to people, provides more scene experiences, and can even achieve energy-saving, environmentally friendly, comfortable and convenient functions. Among them, smart lighting is the most intuitive project, and we can intuitively feel its charm visually.
6 scene intelligence
Built-in high-performance MCU chip, through the unique software algorithm of Juxin R&D team, the power supply has 2 signal receiving ports and 2 dialing control ports. It can be allocated according to different needs to realize power adjustment, brightness adjustment, color temperature adjustment and other functions respectively, and flexibly supports 6 common scenarios. 5-speed double dial to adjust power and color temperature By designing

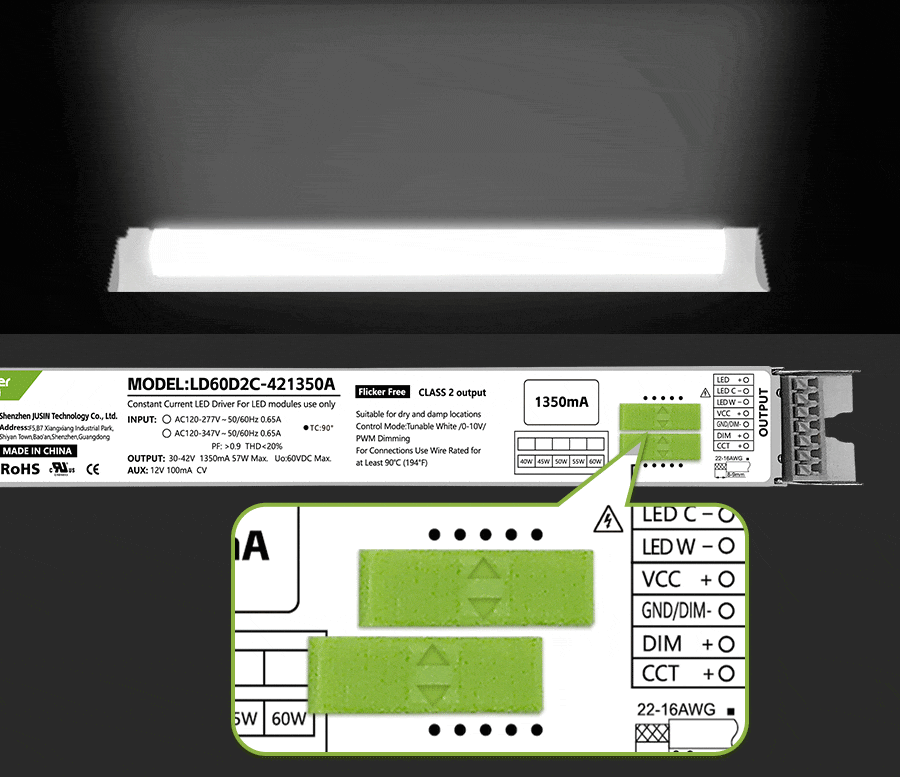

5 levels of dimming and color adjustment
5 levels of dimming and color adjustment on the power supply casing, users can realize dimming and color adjustment more conveniently, meeting diversified customer needs. Moreover, the independent dual-channel circuit can avoid the harm caused by the current superposition of the other LED when one of the LEDs fails, effectively protecting the lamp beads; at the same time, it will not be affected by the current imbalance caused by the unbalanced voltage of the two lamp beads. Phenomenon.
12V auxiliary power supply design
The power supply comes with a 12V auxiliary power supply, which can perfectly match various smart modules and sensors to achieve intelligent interconnection of lamps.
Part2:scene mode

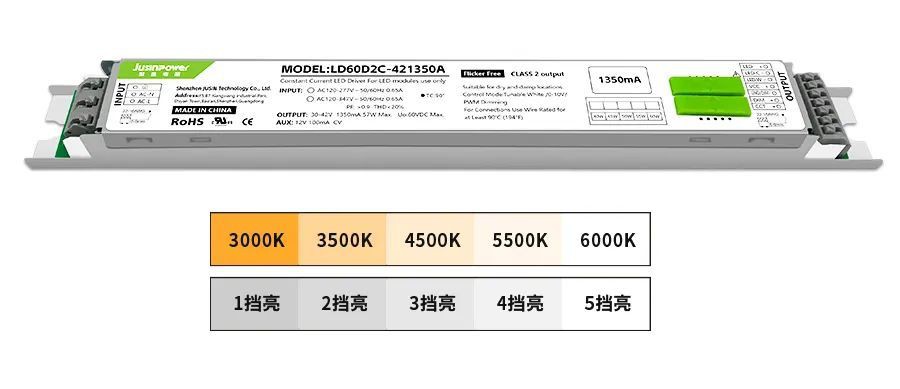

Scene 1: 5-level dialing to dial color temperature

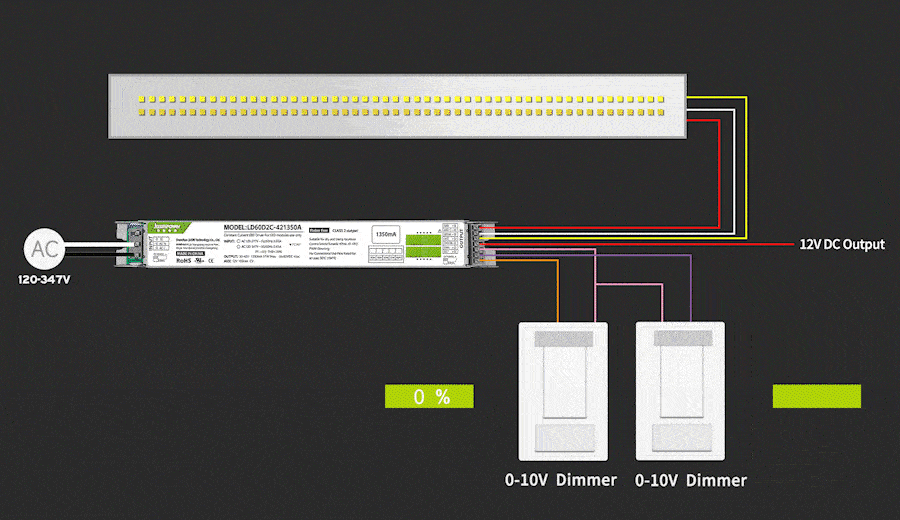

Scenario 2: Turnable White function: Achieve infinite changes in the brightness and color temperature of the lamp through two 0-10V dimmers:

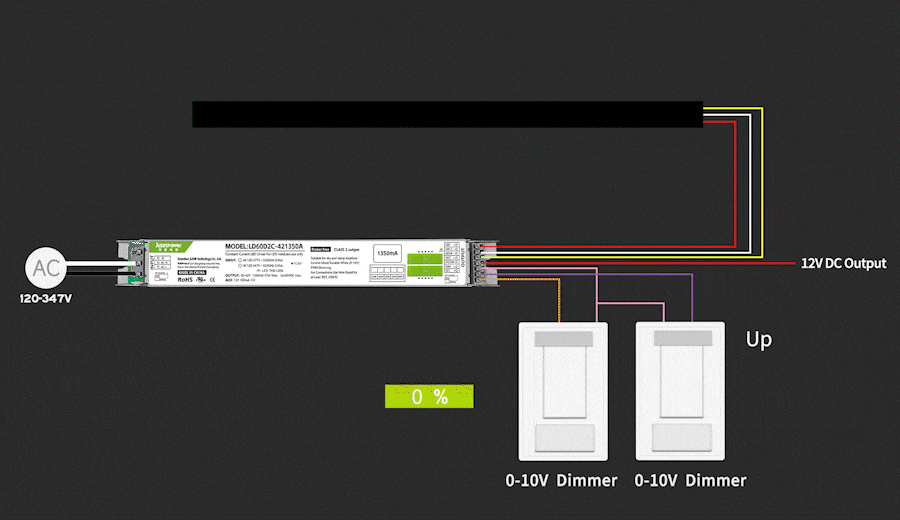

Scene 3: Up and Down function: Up-Down personalization of strip luminaires via two 0-10V dimmers

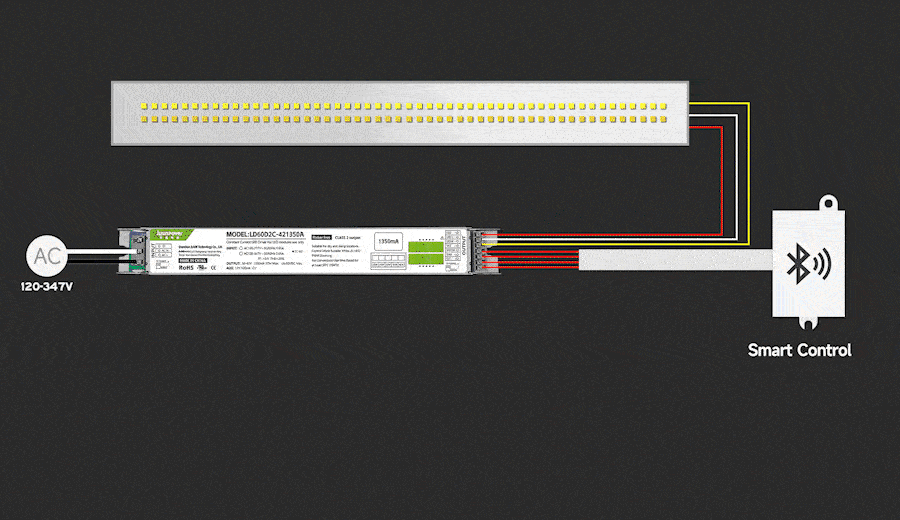

Scenario 4: Intelligent module function: Through the built-in 12V auxiliary power supply of the power supply, it can be connected to commonly used intelligent controllers on the market to realize intelligent adjustment of lamps.

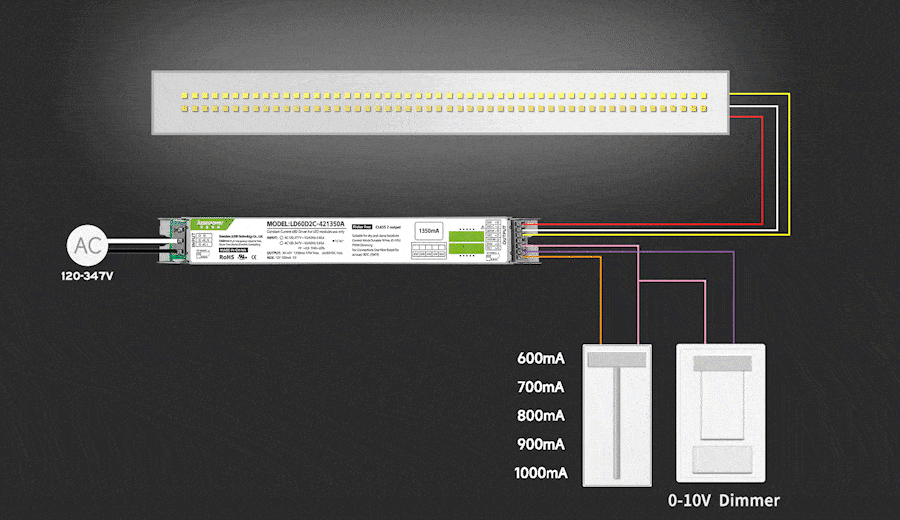

Scene 5: Dim to warm function: Power adjustment can be achieved through an external DIP switch. The color temperature and brightness can be adjusted simultaneously through the 0-10V dimmer. When the dimmer is adjusted to the minimum, the brightness is the lowest and the color temperature becomes warmer, achieving an ideal living environment.

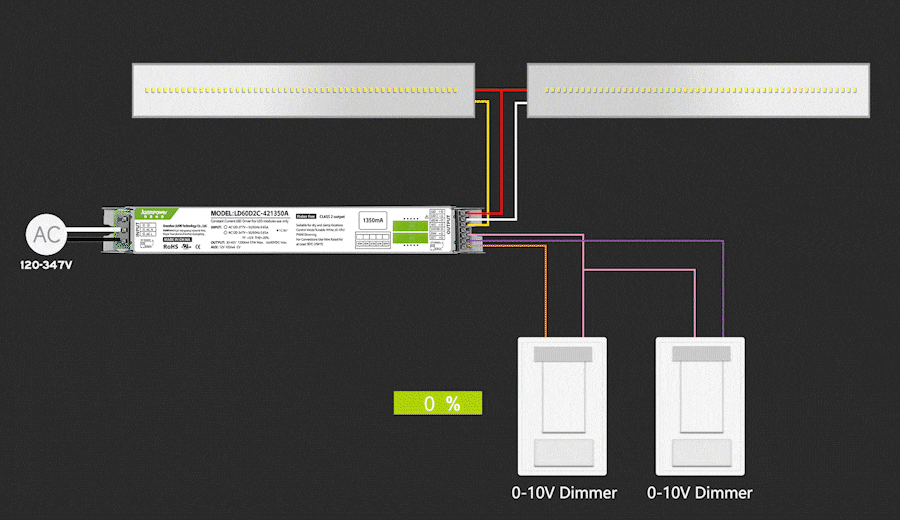

Scenario 6: Dual channel function: Connect two separate lamps and control their respective brightness through two 0-10V dimmers

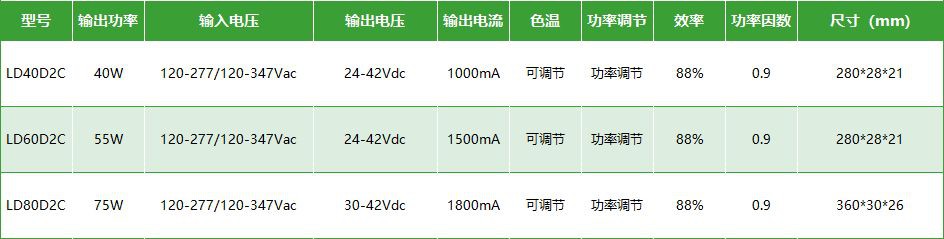

Part3:Product parameters
