70W Tunable White LED Driver
70W tunable white led driver mixed two channels achieve smoothest color temperature tuning and brightness dimming to low, which let human feel like sunlight and moonlight. It's easy and secure installation.5-12V Auxiliary power design, perfectly matched with all kinds of smart modules and sensors. Complied with the latest UL dimming signal line isolation standard.
Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free

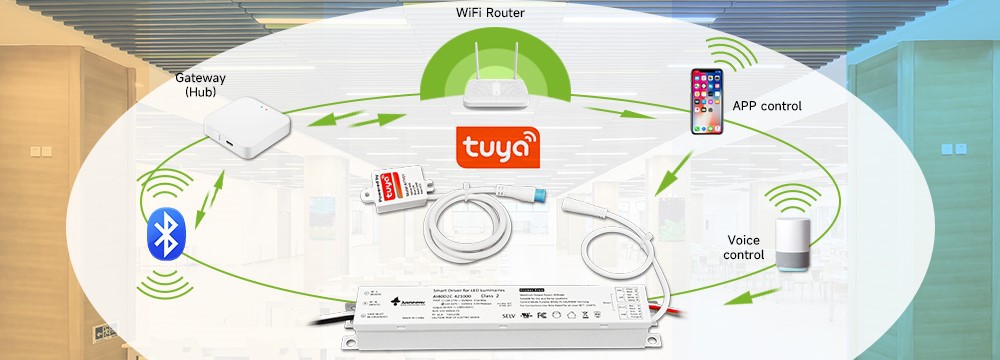

12V auxiliary
power supply
glowing up
and down
1.CCT 3000k,4000k and 6000k
2.Surge protection L-N 1KV, L- N- FG 2KV
3.Rated lifetime of 50,000 hours @ Tc = 85°C
4.Universal input voltage, 120-347V AC 50/60Hz.
3 scene modes

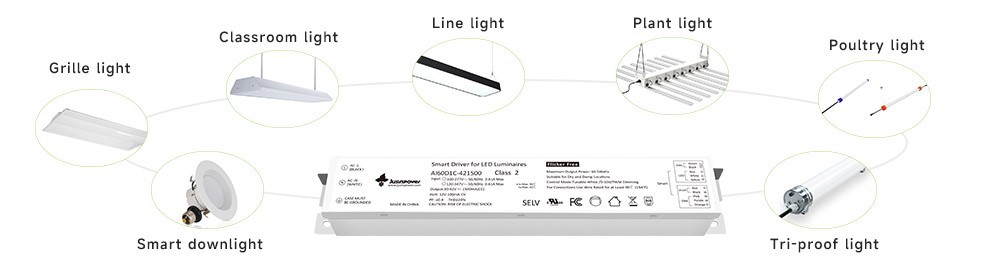

Application:

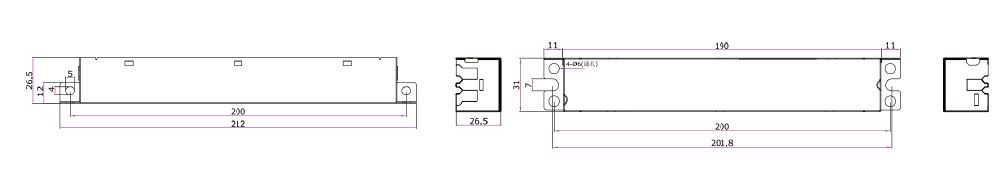

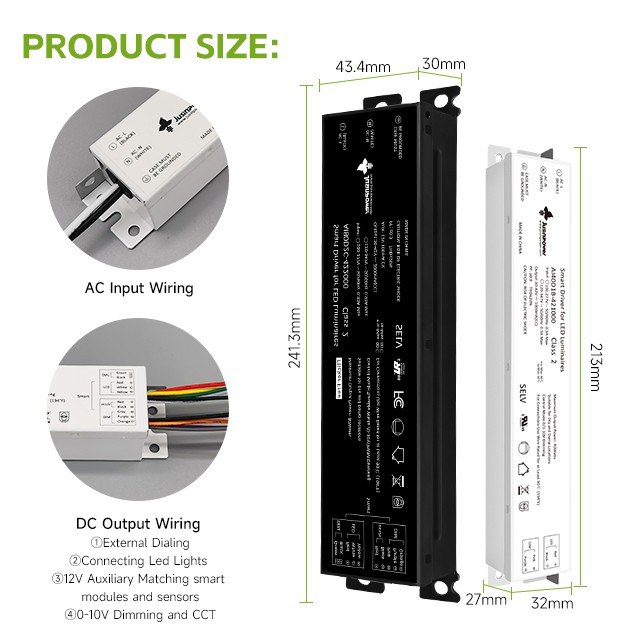

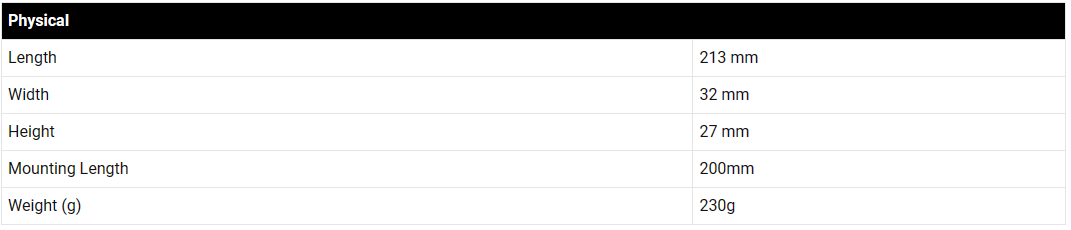

Dimensional Diagram (mm):
Length:213mm Width: 32mm Height:27mm

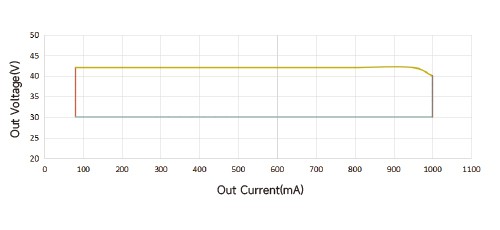

Driver Operating Range
70W tunable white led driver Maximum output voltage 40-45V, maximum output current 1500mA.

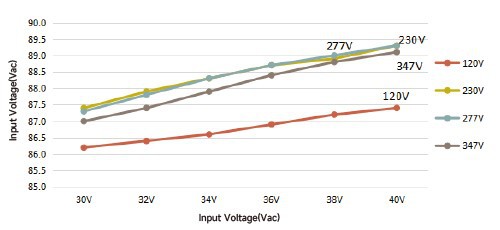

Power efficiency curve
Typical performance measurements are shown. The charts are to be used as a guideline and not for specification use.

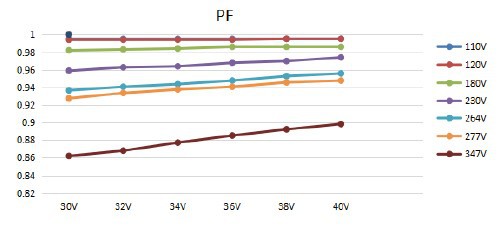

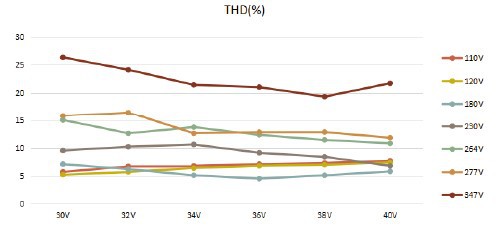

Performance: Total Harmonic Distortion, & Power Factor:
70W tunable white led driver THD. When the input voltage is 120V and the output voltage is 36V, the THD is about 7%. When the input voltage is 120V and the output voltage is 36V, the PF is close to 1.

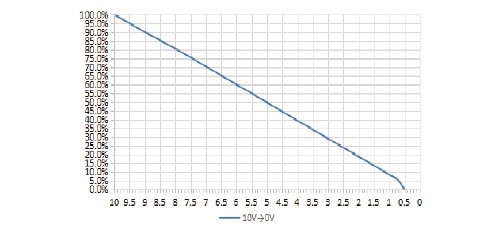

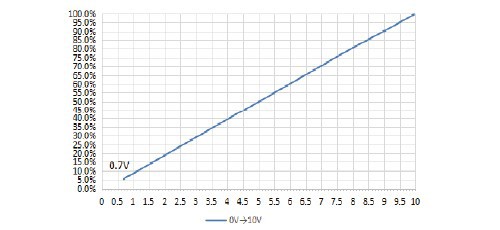

0-10V/10-0V Dimming
The light is off when the voltage is adjusted to 0.5V. At 0.7V, it appears slightly bright.

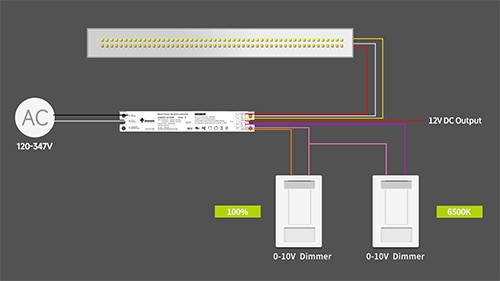

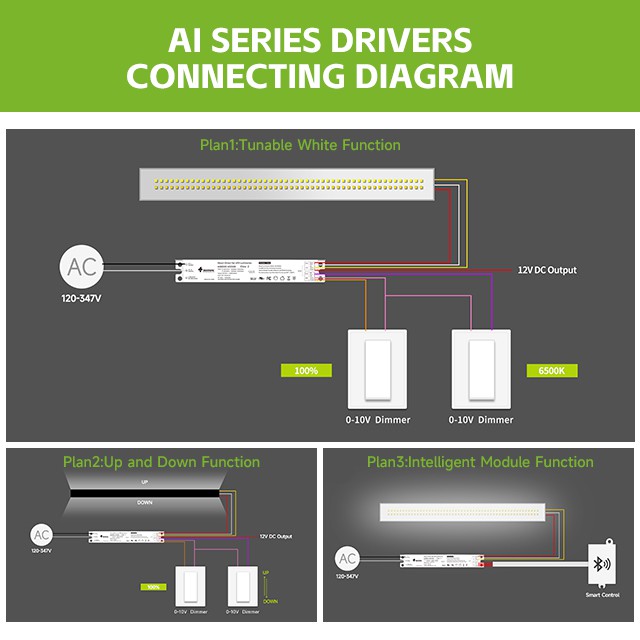

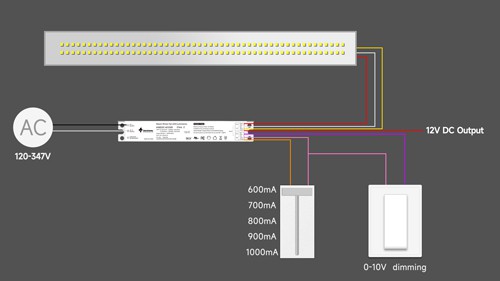

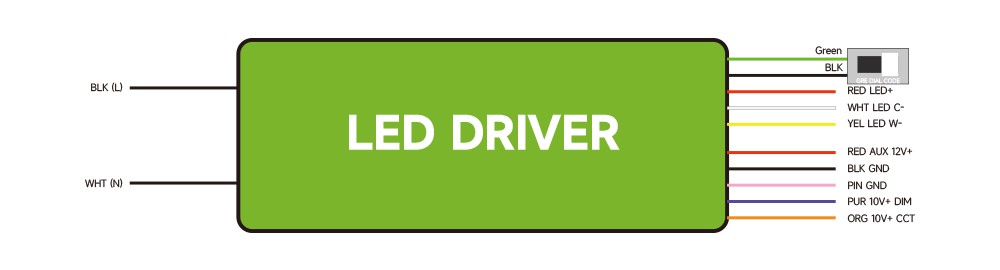

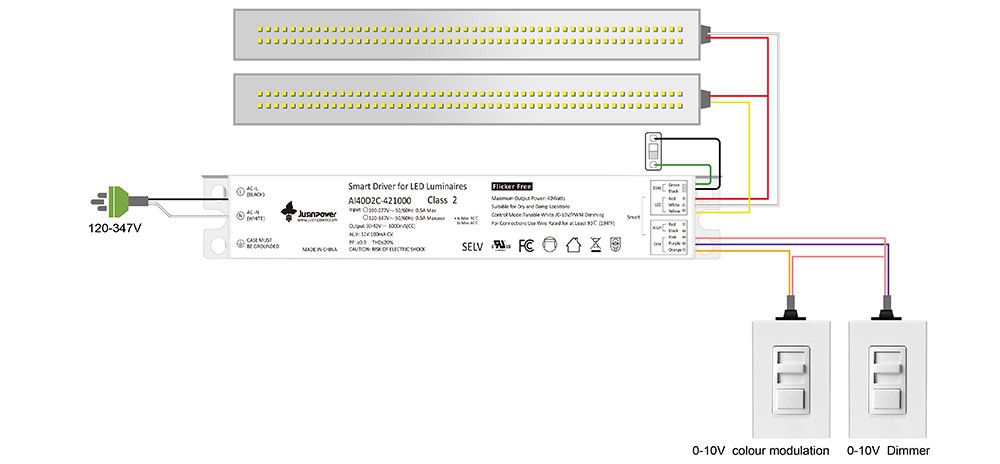

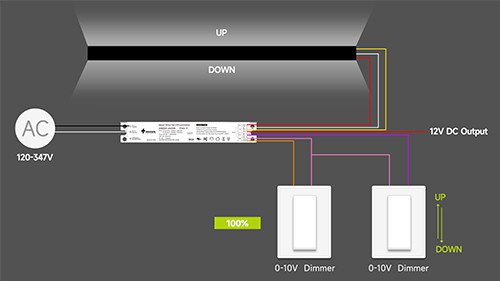

Wiring Diagram
★ AC input ：
UL1015 18AWG 105℃ 600V 230mm Black-L White-N
★ DC output：
UL1007 20AWG 80℃ 300V 230mm Red V+; White C-; Yellow W-
★ D I M:
UL1007 22AWG 80℃ 300V 230mm Purple DIM+; Pink DIM- ;Orange CCT-
★ Dial code(Power regulation)：
UL1007 22AWG 80℃ 300V 230mm Green ; Black
