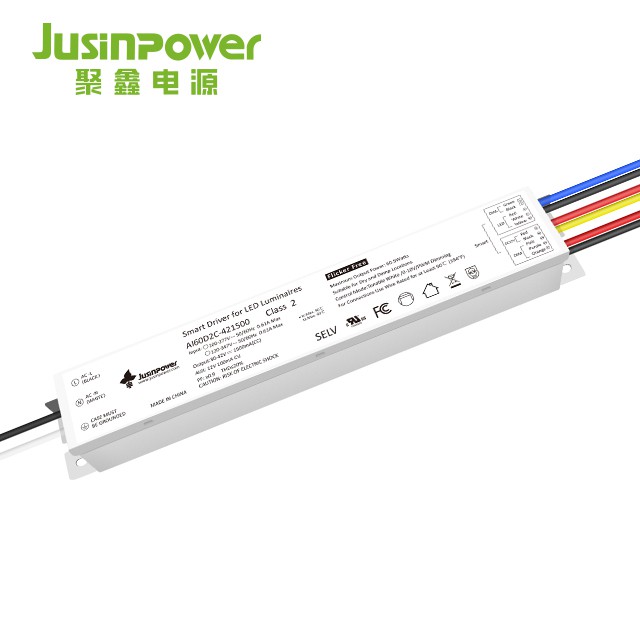

60W Tunable White LED Driver
60W tunable white led driver is isolated constant current led driver with 0-10V isolated dimming signal, max power 60W.It has 12V 100mA (max) constant voltage auxiliary power supply,suitable for universal market. Dual channel output,0-10V/PWM/push tunable white for up and down light and other personalized application scenarios.
Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Two-stage circuit flicker free design
2.PWM/0-10V Dimming signal isolation
3.Smooth, flicker free dimming
4.Wide voltage input driver

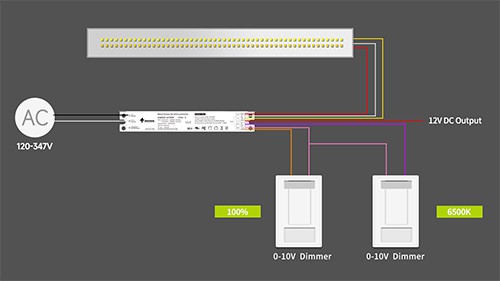

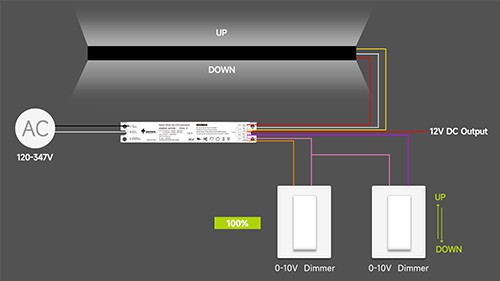

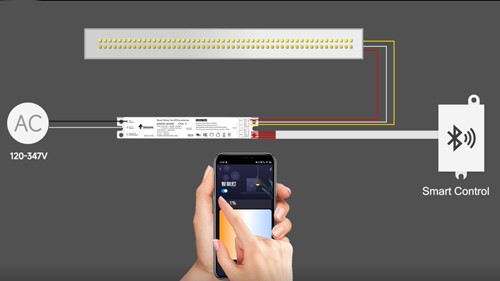

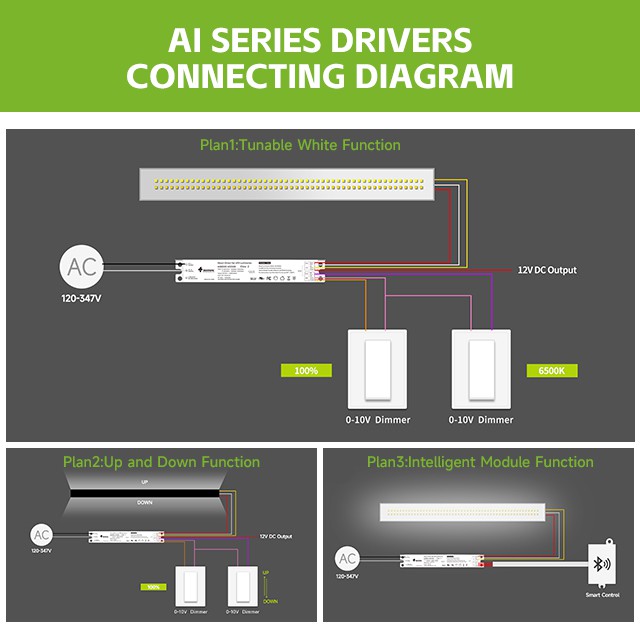

3 scene modes

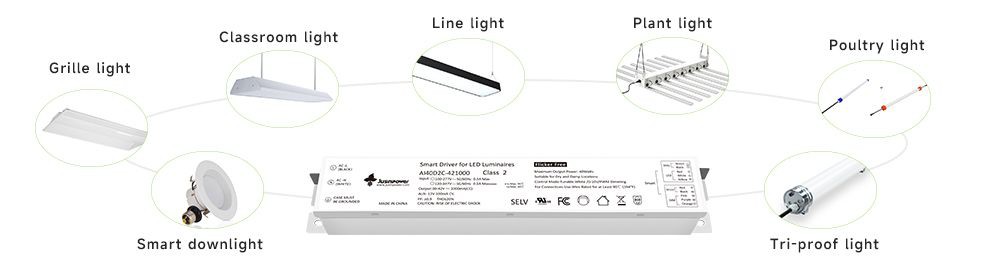

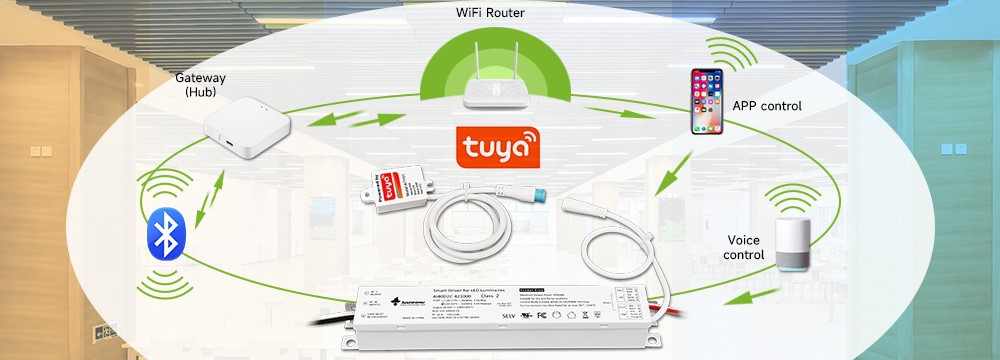

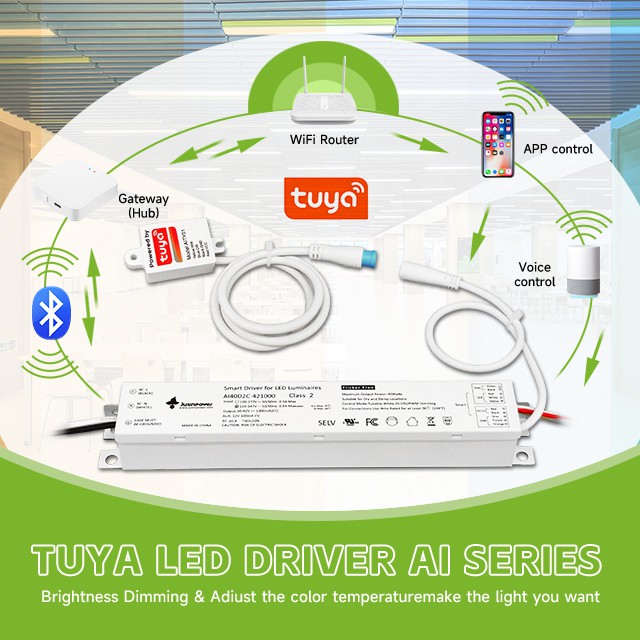

Application:

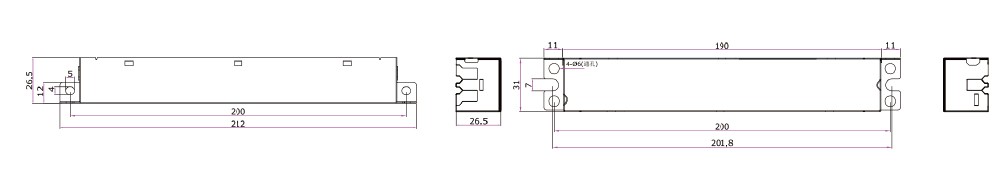

Dimensional Diagram (mm):
Length:213mm Width: 32mm Height:27mm

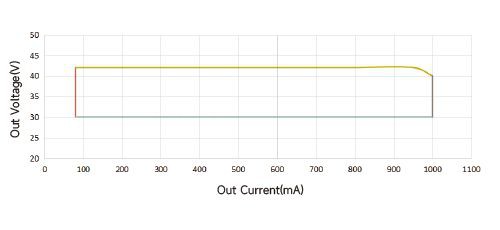

Driver Operating Range
Maximum current up to 1500mA, maximum voltage up to 40V or more

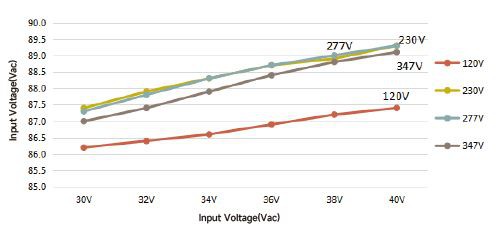

Power efficiency curve
Typical performance measurements are shown. The charts are to be used as a guideline and not for specification use.

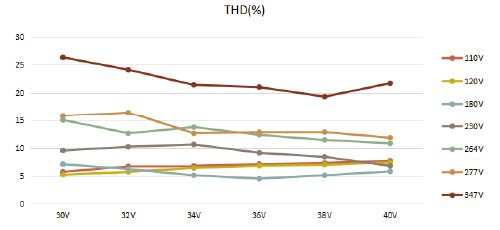

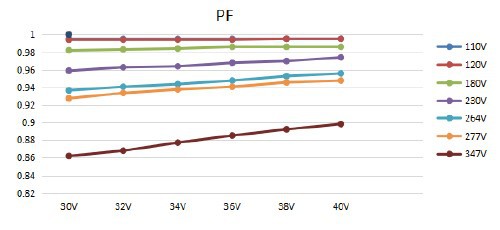

Performance: Total Harmonic Distortion, & Power Factor
When the input voltage is 120V and the output voltage is 36V, the THD is about 7%. When the input voltage is 120V and the output voltage is 36V, the PF is close to 1.

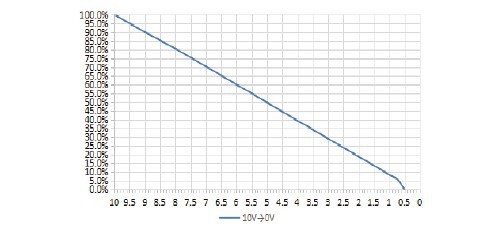

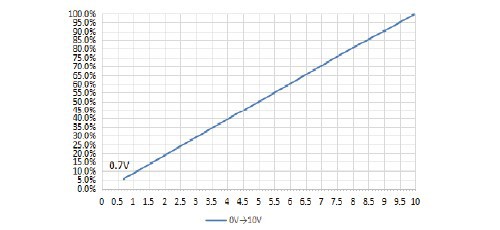

0-10V/10-0V Dimming
The light is off when the voltage is adjusted to 0.5V. At 0.7V, it appears slightly bright.

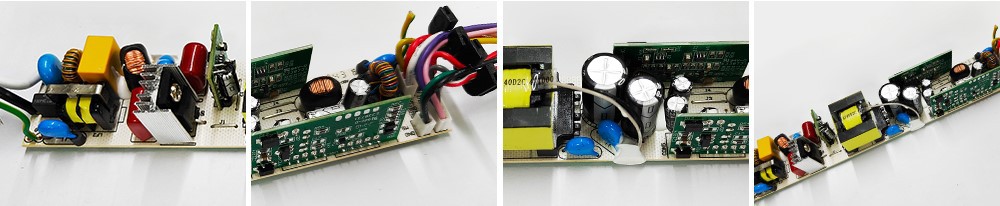

Product Details:

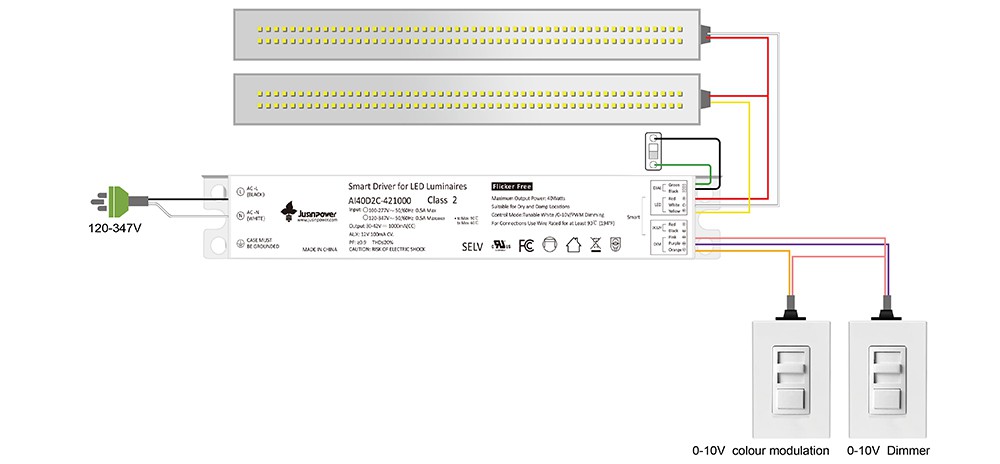

Wiring Diagram
★ AC input:
UL1015 18AWG 105℃ 600V 230mm Black-L White-N
★ DC output:
UL1007 20AWG 80℃ 300V 230mm Red V+; White C-; Yellow W-
★ DIM:
UL1007 22AWG 80℃ 300V 230mm Purple DIM+; Pink DIM-; Orange CCT-
★ Dial code (Power regulation):
UL1007 22AWG 80℃ 300V 230mm Green; Black
Two ends of the product are connected, one end is AC input terminal, the other end is DC output terminal and light modulation signal input terminal, V+, V1-, V2-respectively are connected with the positive and negative poles of LED lamp; DIM is connected with 0-10V positive adjustment brightness, CCT is connected with 0-10V positive adjustment color temperature, VCC is supplied with 5V (or 12V) power supply, GND grounding.
Hot Tags: 60w tunable white LED driver, China 60w tunable white LED driver manufacturers, suppliers, factory, no isolation, Dimmable LED Driver, 4500K selectable, 1200mA, five color temperature switch, dimmable driver
AI II series
AI60D2C-421500 (0-10V)
|
Performance |
|
|
Input Voltage |
120-347 Vac |
|
Input Current Max |
0.7A |
|
Input Power Max |
70W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 @ max load |
|
THD max |
< 20 % @ max load |
|
Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
|
Max. Output Current |
1500mA |
|
AUX Power |
12V 100mA |
|
Output Power |
60W |
|
Power Efficiency |
88%@347V max load |
|
Input Line Regulation |
±5 % |
|
Adjustment Rat |
±5 % |
|
Output Current Ripple |
<10% (Pk-Pk/avg) |
|
Inrush Current* Peak / >10% Duration |
347V: 50A / 240uS |
|
Physical |
|
|
Length |
213 mm |
|
Width |
32 mm |
|
Height |
27 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|

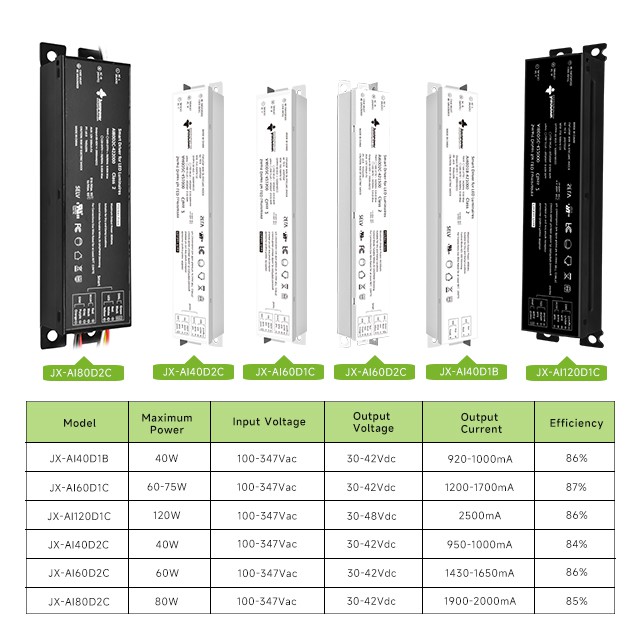

Series Driver |
|||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Dimension(mm) |
Efficiency |
Size |
Power Regulation |
Certificate |
|
JX-AI40D2C |
40W |
100-277Vac |
30-42Vdc |
950mA |
201.8,200,7 |
84% |
L213*W32*H27 |
External dip switch |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
|||||||
|
JX-AI60D2C |
60W |
100-277Vac 120-347Vac |
30-42Vdc |
1430mA |
201.8,200,7 |
86% |
L213*W32*H27 |
External dip switch |
UL FCC CLASSII |
|
30-40Vdc |
1500mA |
||||||||
|
30-36Vdc |
1650mA |
||||||||
|
JX-AI80D2C |
80W |
100-277Vac |
30-42Vdc |
1900mA |
167,167,8 |
85% |
L182*W45*H32 |
External dip switch |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
2000mA |
|||||||
|
Environmental |
|
|
Safety Standard |
Ul8750 ,Class2 |
|
EMC Emission |
Meets FCC Part 15 |
|
Operating Temperature |
-20°C To 50°C |
|
Storage Temperature |
-20°C To 85°C |
|
Warranty Tc |
85°C Max For 50k Hr Life |
|
Location Rating |
Ul Dry & Damp |
|
Surge Protection |
L-N 1Kv , L-N-Fg 2Kv |
|
Certificate |
UL/FCC Certificate |
