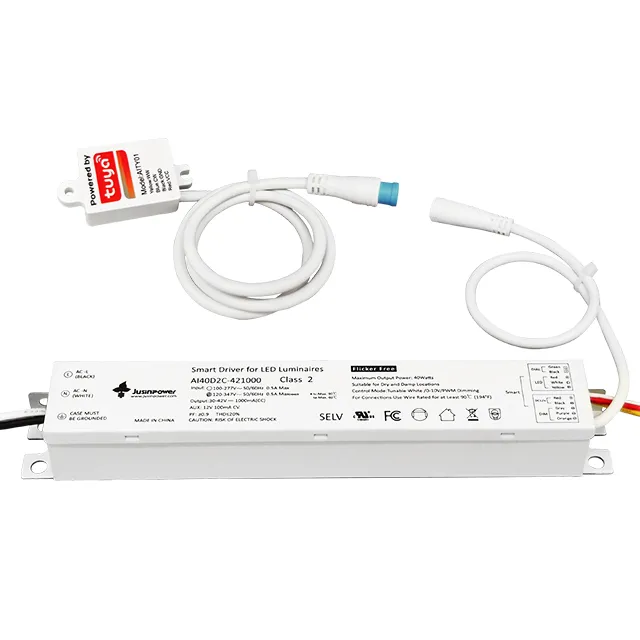

40W Tunable White LED Driver
40W tunable white led driver are dual channels LED drivers, designed for LED Lighting
and tunable white application. Dimmer is connected with 0-10V positive adjustment brightness. The input voltage is 100-277/120-347Vac.Maximum power is up to 40W.Flicker free is optional. This device complies with part 15 of the FCC Rules.

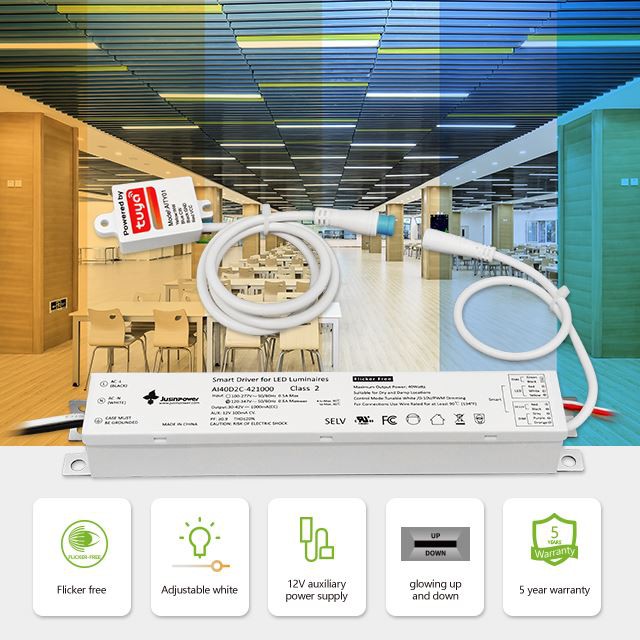

Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Flicker-free&Radiation-free
2.Over Temperature Protection
3.Compatible with many lighting fixtures and control systems
4.5years warranty
4 scene modes

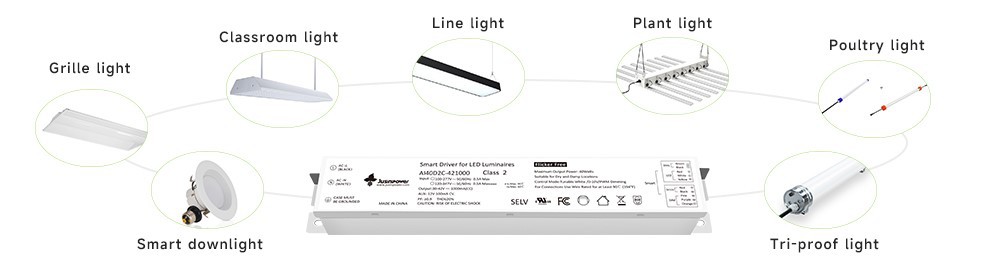

Application:
Electrical Characteristic:
Driver Operating Range:
Maximum current up to 1000mA, maximum voltage up to 40V or more

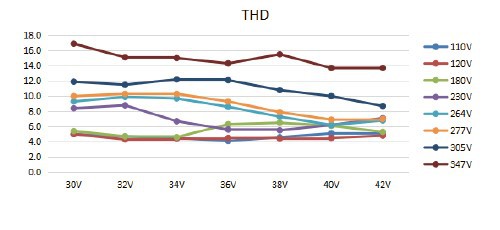

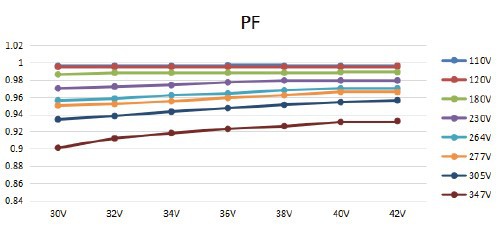

Performance: Total Harmonic Distortion, & Power Factor:
When the input voltage is 277V and the output voltage is 34V, the THD is 10. When the input voltage is 120V and the output voltage is 36V, the PF is close to 1.

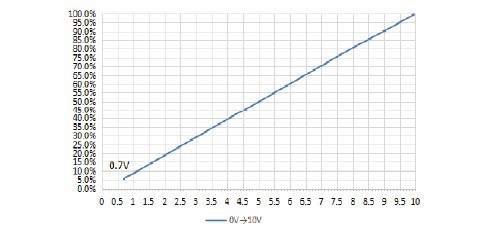

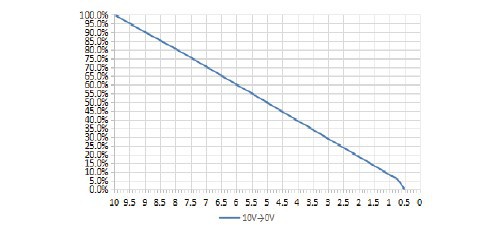

0-10V/10-0V Dimming
The light is off when the voltage is adjusted to 0.5V. At 0.7V, it appears slightly bright.

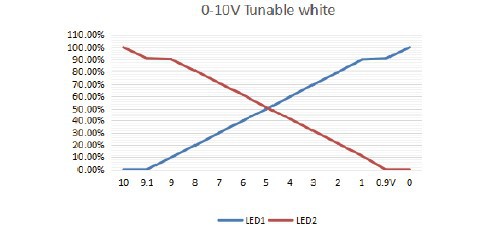

0-10V Tunable white
LED1 is completely turned off when the two output power supplies are 9.1V. LED2 shows 90% brightness.

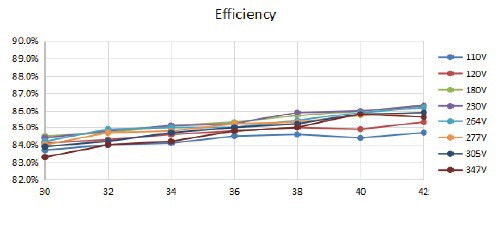

Power efficiency curve
Typical performance measurements are shown. The charts are to be used as a guideline and not for specification use.
Product Label:

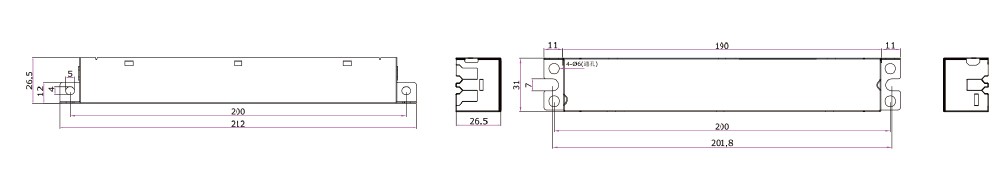

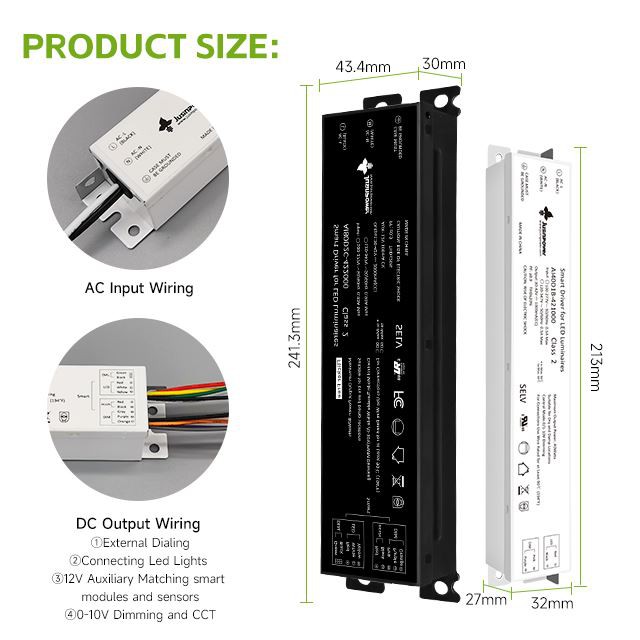

Dimensional Diagram (mm):
Length: 213mm Width: 32mm Height: 27mm

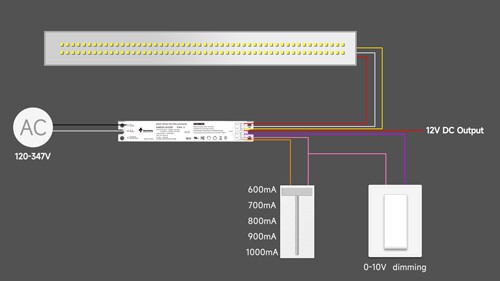

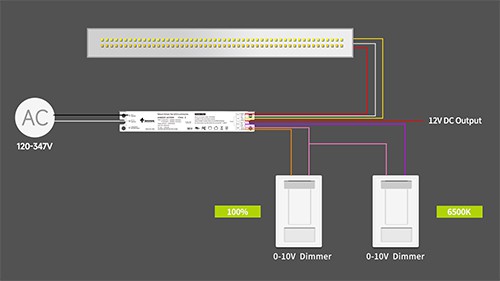

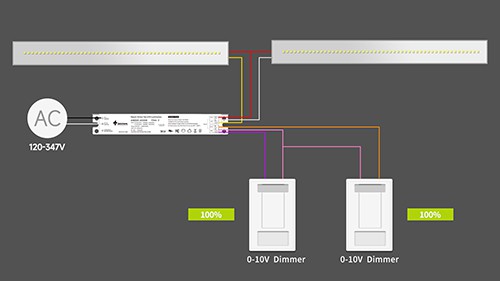

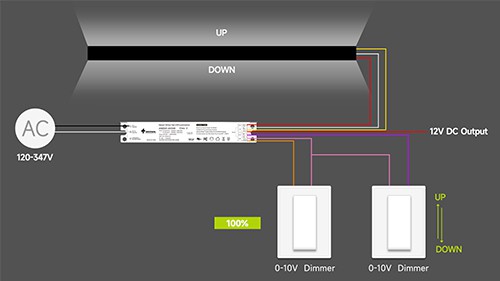

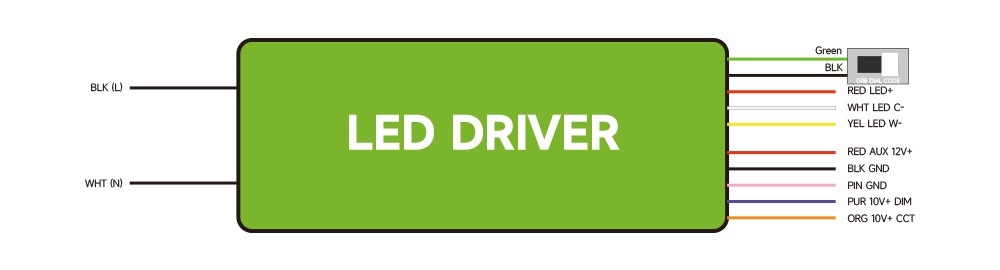

Wiring diagram
★ AC input ：
UL1015 18AWG 105℃ 600V 230mm Black-L White-N
★ DC output：
UL1007 20AWG 80℃ 300V 230mm Red V+; White C-; Yellow W-
★ D I M:
UL1007 22AWG 80℃ 300V 230mm Purple DIM+ ; Pink DIM-; Orange CCT-
★ Dial code (Power regulation)
UL1007 22AWG 80℃ 300V 230mm Green; Black
Hot Tags: 40w tunable white LED driver, China 40w tunable white LED driver manufacturers, suppliers, factory, Suitable for narrow assembly spaces, 0 01 dimming, 920mA, thin led light fixtures, 22W led driver, Casambi LED Driver
AI II series
AI40D2C-421000 (0-10V)
|
Performance |
|
|
Input Voltage |
120-347 Vac |
|
Input Current Max |
0.5A |
|
Input Power Max |
45W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 @ max load |
|
THD max |
< 20 % @ max load |
|
Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
|
Max. Output Current |
1000mA |
|
AUX Power |
12V 100mA |
|
Output Power |
40W |
|
Power Efficiency |
86%@347V max load |
|
Input Line Regulation |
±5 % |
|
Adjustment Rat |
±5 % |
|
Output Current Ripple |
<10% (Pk-Pk/avg) |
|
Inrush Current* Peak / >10% Duration |
347V: 50A / 160uS |
|
Physical |
|
|
Length |
213 mm |
|
Width |
32 mm |
|
Height |
27 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|
Series Driver |
|||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Dimension(mm) |
Efficiency |
Size |
Power Regulation |
Certificate |
|
JX-AI40D2C |
40W |
100-277Vac |
30-42Vdc |
950mA |
201.8,200,7 |
84% |
L213*W32*H27 |
External dip switch |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
|||||||
|
JX-AI60D2C |
60W |
100-277Vac 120-347Vac |
30-42Vdc |
1430mA |
201.8,200,7 |
86% |
L213*W32*H27 |
External dip switch |
UL FCC CLASSII |
|
30-40Vdc |
1500mA |
||||||||
|
30-36Vdc |
1650mA |
||||||||
|
JX-AI80D2C |
80W |
100-277Vac |
30-42Vdc |
1900mA |
167,167,8 |
85% |
L182*W45*H32 |
External dip switch |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
2000mA |
|||||||
|
Environmental |
|
|
Safety standard |
UL8750 ,Class2 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Location Rating |
UL Dry & Damp |
|
Surge protection |
L-N 1KV , L-N-FG 2KV |
|
Certificate |
UL/FCC certificate |
